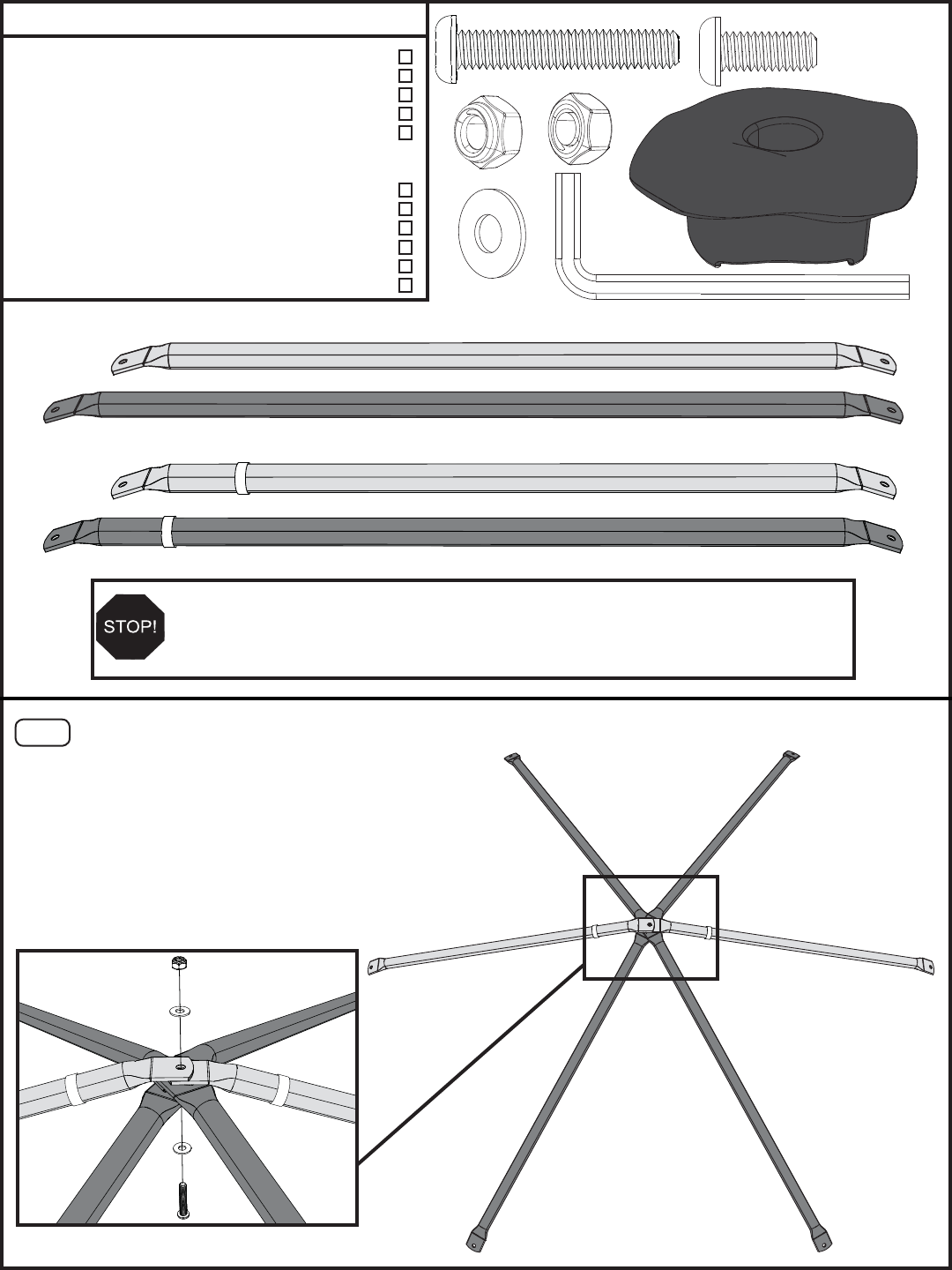

Complete the joint shown five times. Slide a Washer (HE)
over a 1 3/4” Bolt (HA), then slide the Bolt through four
Blue Tubes (B) and two Red large Tubes (A-1) in the order
indicated by the numbers. Slide another Washer (HE) over
the Bolt and secure with a Standard Nut (HD). Hold the Nut
with a wrench while tightening the Bolt. Tighten completely to
prevent movement. Repeat this step five times, making five
joints.
1
A 8002153 1 1/8” x 33.875” Red Tubing 15
B 8002151 1 1/8” x 38.128” Blue Tubing 30
A-1 8002886 1 1/4” x 33.875” Red Tubing 15
B -1 8002890 1 1/4” x 38.128” Blue Tubing 5
C 8002067 Handhold 16
Dome Climber Hardware (8002389)
HA 8002102 5/16” x 1 3/4” Bolt 16
HB 8000162 5/16” x 3/4” Bolt 10
HC 8000209 5/16” Nylock Nut 26
HD 8001390 5/16” Standard Nut 16
HE 8002027 1/4” Thin Washer 84
HF 8000355 3/16” Allen Wrench 2
Primary Color Parts List
A-1
B
A-1
HE
1
3
2
B
B
B
4
6
5
HD
HA
HE
HE
A
B
C
A-1
B-1
A-1 and B-1 can be identified by the sticker placed around the
tube and must be placed in the locations shown in the
instructions. Do not remove the stickers until after step 8.
HA
HB
1
2
3
4
5
6
HD
HC
There may be extra hardware.
