There are cases when white balance is achieved for the center of the screen but not for the upper and lower
ends, hence causing other colours to appear with green or magenta. This is brought about by the lens
characteristics. The process of rectifying this is known as white shading.
3. 4.
White Shading Adjustment
2.
--- MENU ---
EXPOSURE . .
WH I T E B ALANCE. .
FILE M
..
PROCESS . .
SYSTEM. .
EXIT
ANAGE
1.
3. Setting and Adjustment During Shooting (continued)
-- ---CE-WHI TE BALAN
CEBALAN
TPRESE
WH I T E
BACKPAGE
0
LMANUA
0
LEVEL(R)
LEVEL(B)
LEVEL(R)
LEVEL(G)
LEVEL(B)
SHADING
- - - - - -
- - - - - -
- - - - - -
-- ---CE-WHI TE BALAN
CEBALAN
LMANUA
WH I T E
BACKPAGE
0
LMANUA
0
LEVEL(R)
LEVEL(B)
LEVEL(R)
LEVEL(G)
LEVEL(B)
SHADING
0
0
0
Blinking

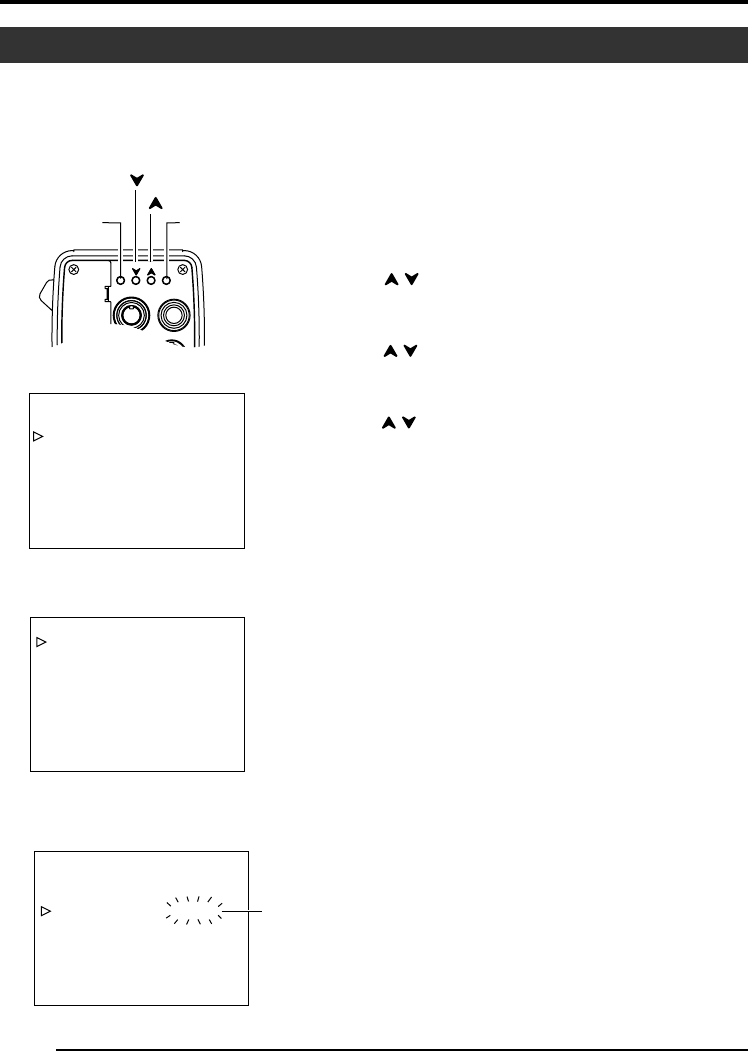

“MENU” Screen
“WHITE BALANCE” Screen
[MENU]
[SET]
[ ]
[ ]
Perform the following setting upon adjusting white balance.
☞ Page 20
1.
Press the [MENU] button for 1-2 seconds.
The “MENU” screen will be displayed.
2.
Use the [ / ] buttons to select “WHITE BALANCE..”, then
press the [SET] button.
The “WHITE BALANCE” screen will be displayed.
3.
Use the [ / ] buttons to select “SHADING”, then press the
[SET] button.
The set value starts blinking and adjustment is possible.
4.
Use the [ / ] buttons to set value to “MANUAL”, then press
the [SET] button.
