- 26 -GA-7VA Motherboard
English

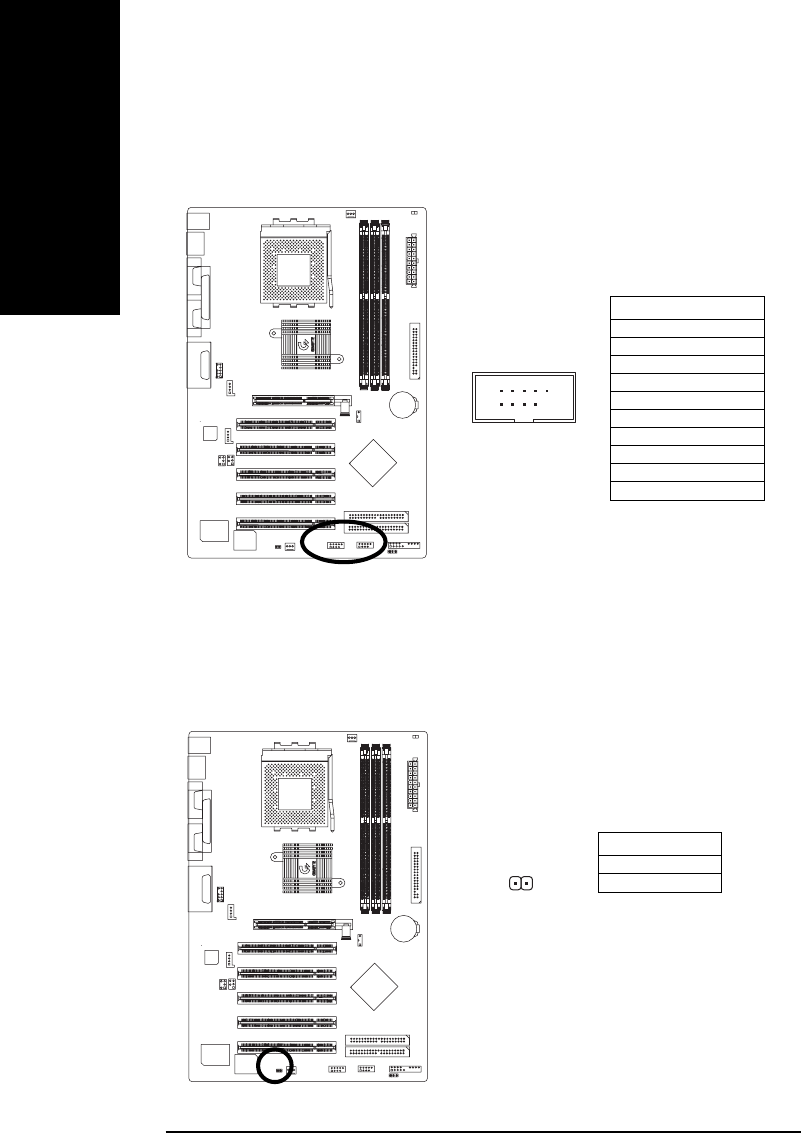

15) F_ USB1 / F_USB2(Front USB Connector, Yellow )
Be careful with the polarity of the front USB connector. Check the pin assignment while you
connect the front USB cable. Please contact your nearest dealer for optional front USB
cable.
1
Pin No. Definition
1 Power
2 Power
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10
USB Over Current
2
9
10
16) CI (CASE OPEN)
This 2 pin connector allows your system to enable or disable the “case open” item in BIOS
if the system case begin remove.
1
Pin No. Definition
1 Signal
2 GND
