9. Aft axle fuel tanks -
Two steel fuel tanks located behind the rear axle.
10. Midship fuel tank - A steel fuel tank located underbody.
11. High pressure fuel lines - Delivers high pressure fuel to the fuel
tanks and fuel pressure regulator.
12. Fuel pressure regulator/Coalescent fuel filter - Reduces fuel
pressure and removes impurities from the gas.
13. Low pressure fuel line - Supplies natural gas to the injectors.
14. AFV module - Contains the unique powertrain electronics that are
required for an NGV.

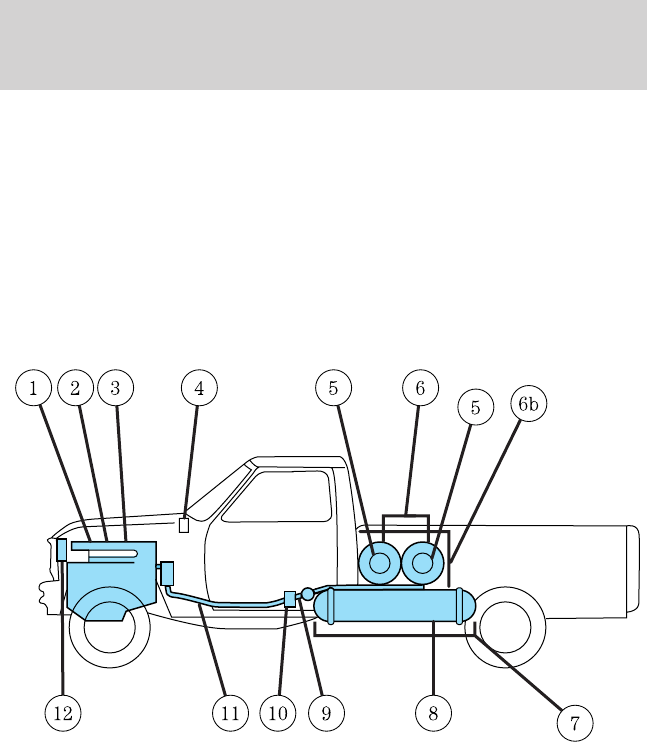

F-150 Heritage Pick-up
1. Fuel rail sensors - An injection pressure sensor and an engine fuel
temperature sensor provide engine fuel information to the powertrain
control module.
2. Isolation solenoid valve - Blocks flow from supply line to injection
manifold when the engine is off.
3. Engine -
A modified 5.4L gasoline engine with Sequential Electronic Fuel
Injection (SEFI), an improved valvetrain and a high compression ratio.
4. Powertrain control module -
Uniquely calibrated for NGV application.
5. Internal tank valve - One electronically actuated, normally closed
solenoid valve is located in each fuel tank. The valve is wired into the
