3-9
SW8/12 VGA Ars • Control
9. On the Choose Firmware File window, double-click on the new firmware
file to open it. The Choose Firmware File window closes, and the path to the
selectedrmwareleisdisplayedinthe“Selectarmwarele”eldonthe
firmware file selection screen.

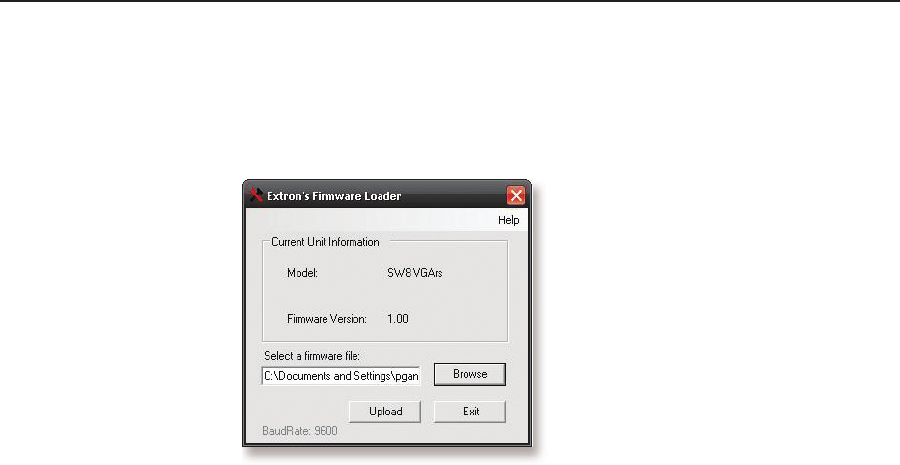

Figure 3-7 — Extron’s firmware loader screen
10
. Click the Upload button. A status bar, which shows the progress of the
upload, appears in the Firmware Loader window. The firmware upload to the
switcher may take several minutes. Once the status bar has progressed fully
from left to right, the firmware loader utility resets the switcher.
In addition, messages appear on the firmware file selection window indicating
when the unit is uploading the firmware, then resetting itself.
When the firmware upload process is completed, the message “Transfer
Complete!”isdisplayed,andthenewrmwareversionnumberappearsin
theCurrentUnitInformationeld.
11. Click Exit to close the Firmware Loader.
