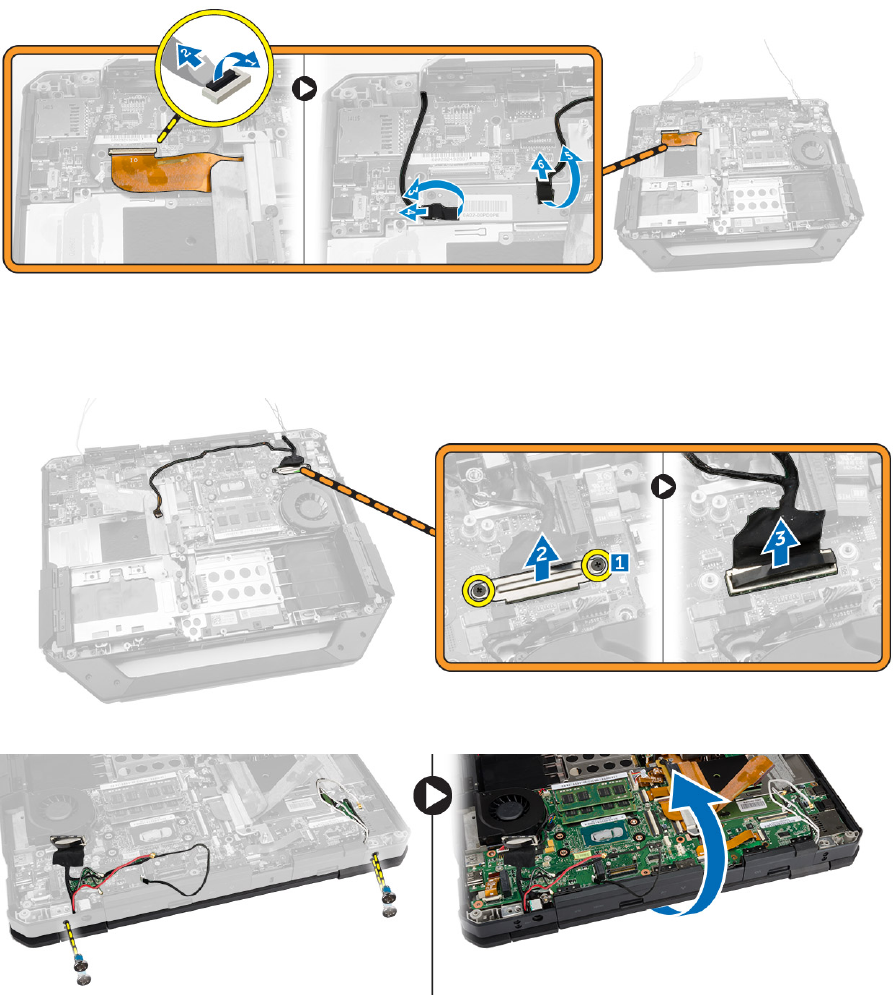

4. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the display assembly connector [1].
b. Lift the tab [2].
c. Disconnect the display assembly connector [3].
5. Remove the screws that secure the display assembly to the computer chassis.
6. Flip the computer to remove the display assembly.
24
