4. Perform the following steps:

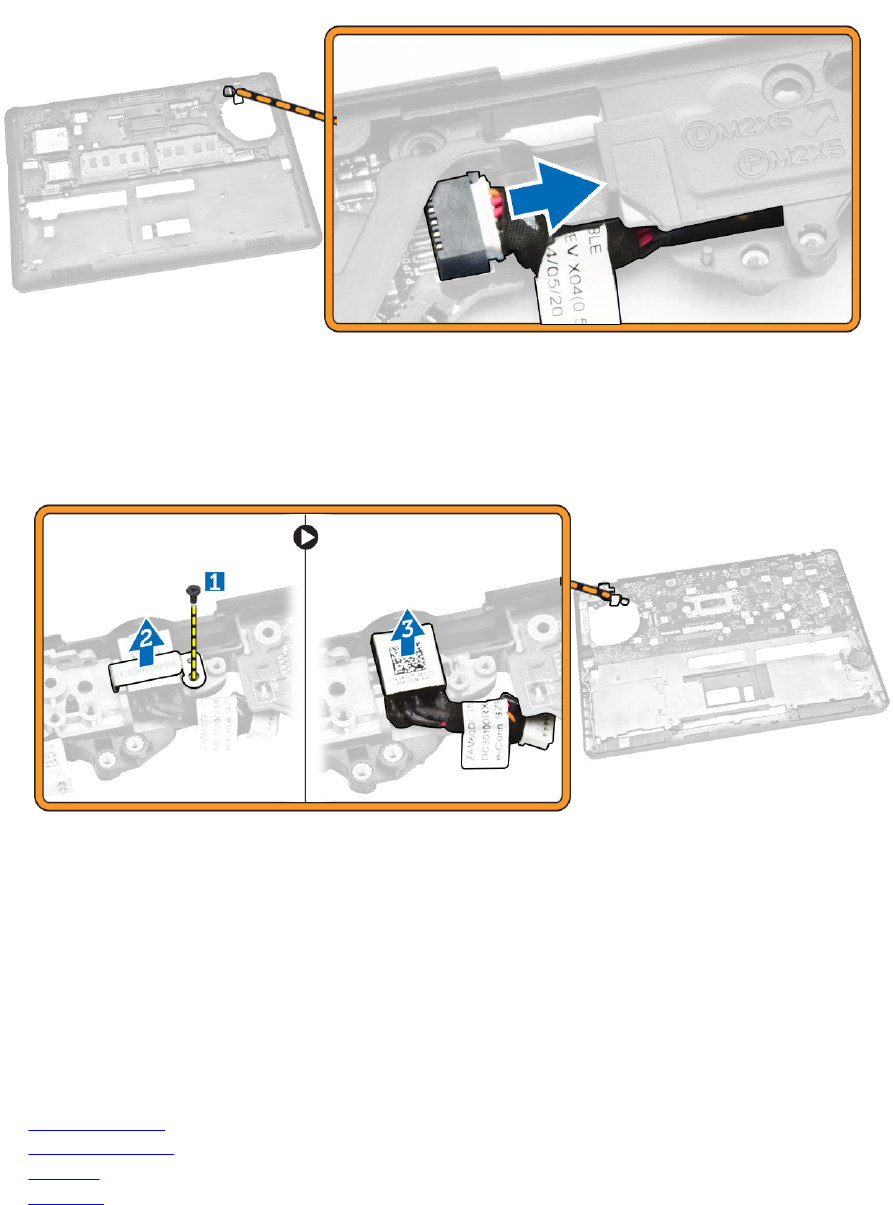

a. Flip the computer.
b. Remove the screw to release the metal bracket on the power-connector port [1] [2].
c. Lift and remove the power-connector port from the computer [3].
Installing the power-connector port
1. Insert the power-connector port into its place on the computer.
2. Place the metal bracket on the power-connector port and tighten the screw to secure the power-
connector port to the computer.
3. Flip the computer.
4. Route the power-connector port cable to its routing channels and connect the power-connector
port cable to its connector on the system board.
5. Install the:
a. display assembly
b. display-hinge cap
c. palmrest
d. keyboard
