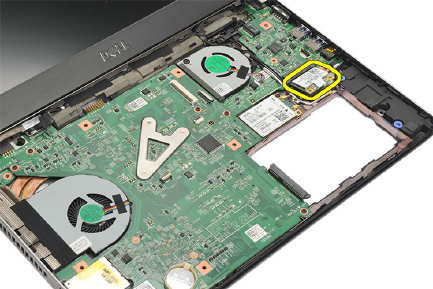

9. Remove the WLAN card.
Installing The Wireless Local Area Network (WLAN) Card
1. Insert the WLAN card at a 45 degree angle into its slot.
2. Connect the antenna cables to their respective connectors marked on the
WLAN card.
3. Tighten the screws to secure the WLAN card in place.
4. Install the
palm rest
.
5. Install the
hard drive
.
6. Install the
keyboard
.
7. Install the
base cover
.
8. Install the
battery
.
9. Follow the procedures in
After Working Inside Your Computer
.
30
