Installing System Components 105

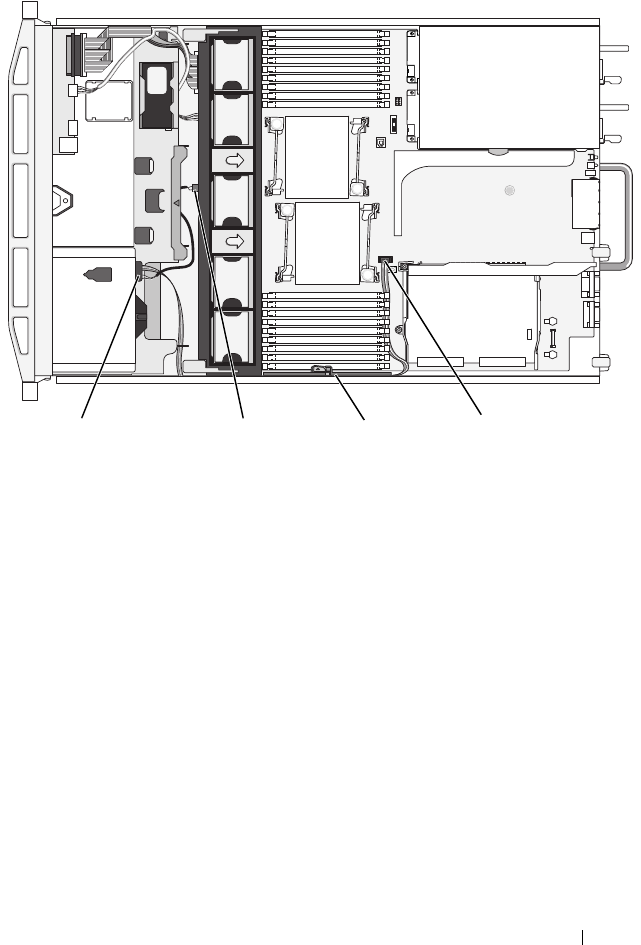

Figure 3-17. Routing the Optical Drive Cable
Integrated Storage Controller Card
Your system includes a dedicated expansion-card slot on riser 1 for an
integrated storage controller card that provides the storage subsystem for your
system’s internal hard drives. The controller supports SAS and SATA hard
drives and also enables you to set up the hard drives in RAID configurations
as supported by the version of the storage controller included with your
system.
1 optical drive connector 2 DVD/TBU_PWR connector
3 cable retention bracket 4 SATA_A connector
1
3
4
2
