Removing the Power Connector
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. Base Cover
b. Battery
c. Hard Drive
d. WLAN Card
e. System Fan
f. Keyboard
g. Base Frame
h. Display Assembly

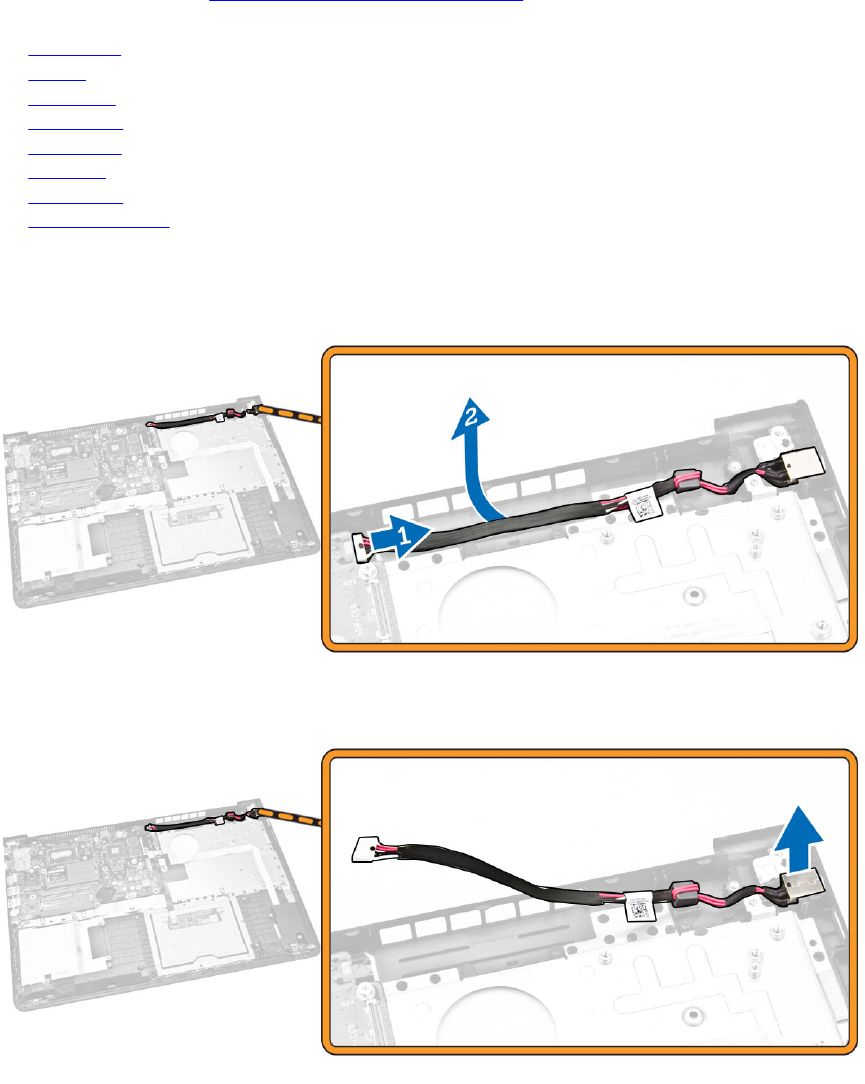

3. Perform the following steps as shown in the illustration:
a. Disconnect the power connector cable [1].
b. Unroute the cable [2].
4. Remove the power connector from the computer.
