3-4 Basic Installation MN1940
3.1.2.2 Dimensions - DSMS23
L
MAX
L
MAX2
75.2
(2.96)
Ø6.35
(0.25)
41.4
(1.63)
15
(0.59)
5.8
(0.23)
20.6
(0.81)
56.4
(2.22)
Square
All dimensions shown as
mm ( inches)
4xØ5 (0.2)
4.9
(0.19)
48.3
(1.9)
47.14
(1.86)
Square
Flying leads
305 ( 12)
‘P’ connector optio n
11.2 (0.44)
51.2
(2.02)
P2
P1
DSMS
Model
Dimensions
(mm / inches)
Weight
L
MAX
L
MAX2
(with control knob)
kg / lb
DSMS23x-1B 67.31 (2.65) 85.34 (3.36) 0.61 (1.35)
DSMS23x-2B 76.71 (3.02) 94.74 (3.73) 0.75 (1.65)
DSMS23x-3B 98.55 (3.88) 116.6 (4.59) 1.11 (2.45)

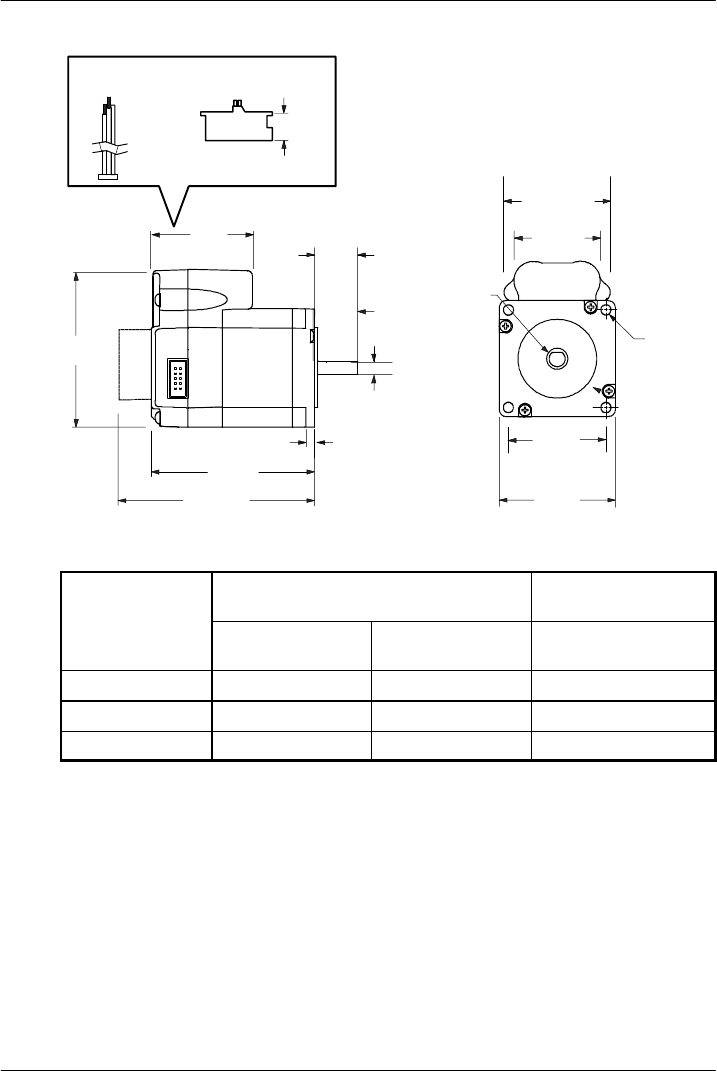

Figure 3 - Package dimensions - DSMS23
