Locate and read the WARNING LABEL(71) on the Magnetic Recumbent 1350 Bike. Make
sure that all users read the WARNING LABEL(71).
EQUIPMENT MAT
Please note the Rear Frame of the
Recumbent Bike is adjustable. Use the
longest size to determine the size of the mat.
CAUTION:
SET UP INSTRUCTIONS

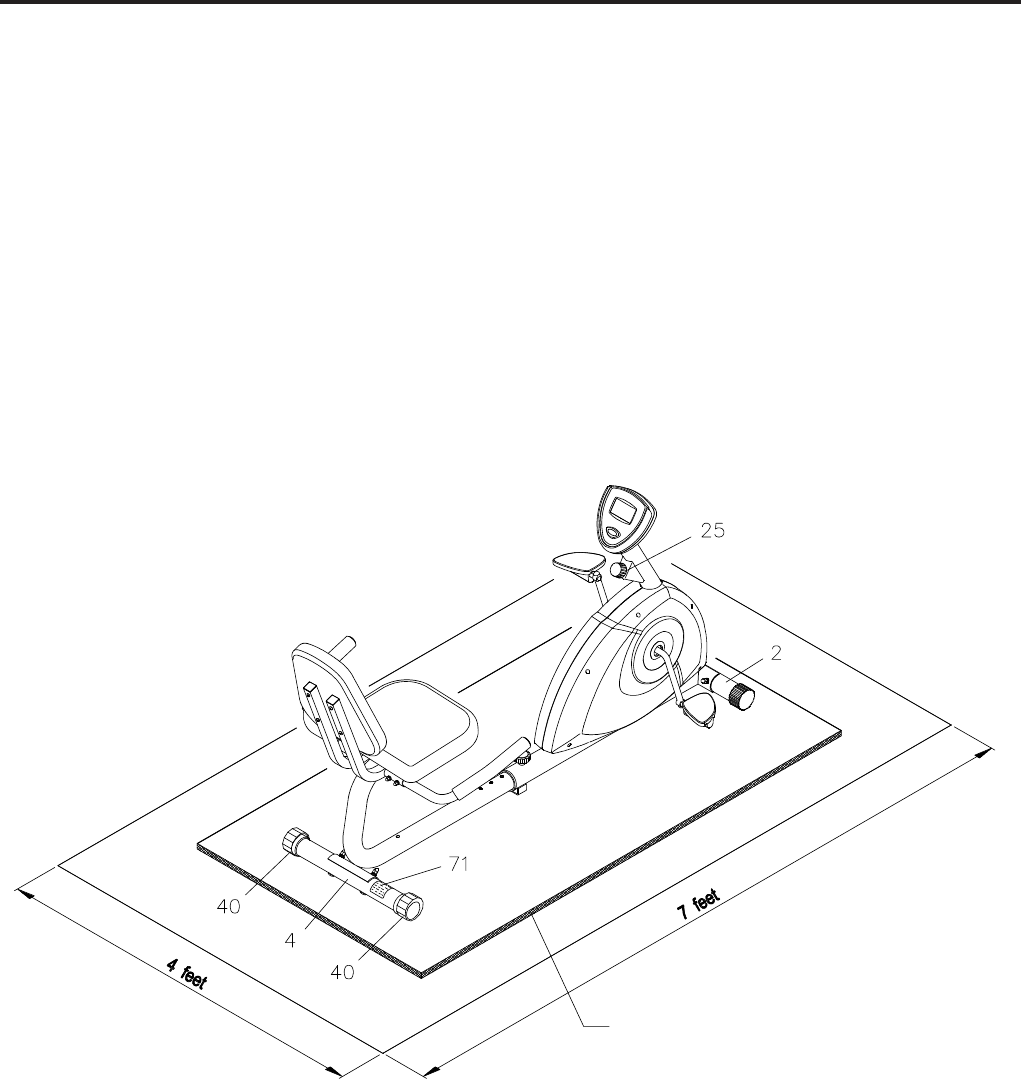

Place the Magnetic Recumbent 1350 Bike in the area where it will be used. It is recommended that the
Magnetic Recumbent 1350 Bike be placed on an equipment mat. The Magnetic Recumbent 1350 Bike
is approximately 61 3/4 inches long (max.) x 27 1/2 inches wide x 36 inches tall. (These dimensions may
vary up to one inch.) An area 4 feet wide x 7 feet long is required for safe operation of the Magnetic
Recumbent 1350 Bike. Make sure that adequate space is available for access to and passage around the
Magnetic Recumbent 1350 Bike.
FUNCTION INSPECTION:
Visually inspect the Magnetic Recumbent 1350 Bike to verify that assembly is as shown in the above
illustration. Check the function of the Magnetic Recumbent 1350 Bike by turning the crank slowly through
one complete revolution to verify that the drive train functions properly. Adjust the TENSION KNOB(25) and
verify that it functions properly.
Adjust the LEVELING CAPS(40) on the REAR STABILIZER(4) so the bike sits on the floor
without rocking. Remove and reposition the LEVELING CAPS(40) on the REAR STABILIZER
(4) to level the
Magnetic Recumbent 1350 Bike.
The Magnetic Recumbent 1350 Bike must be lifted to be moved. Two people are required to
grasp the FRONT STABILIZER(2) and the REAR STABILIZER(4), lift and move.
LEVELING:
MOVING:
