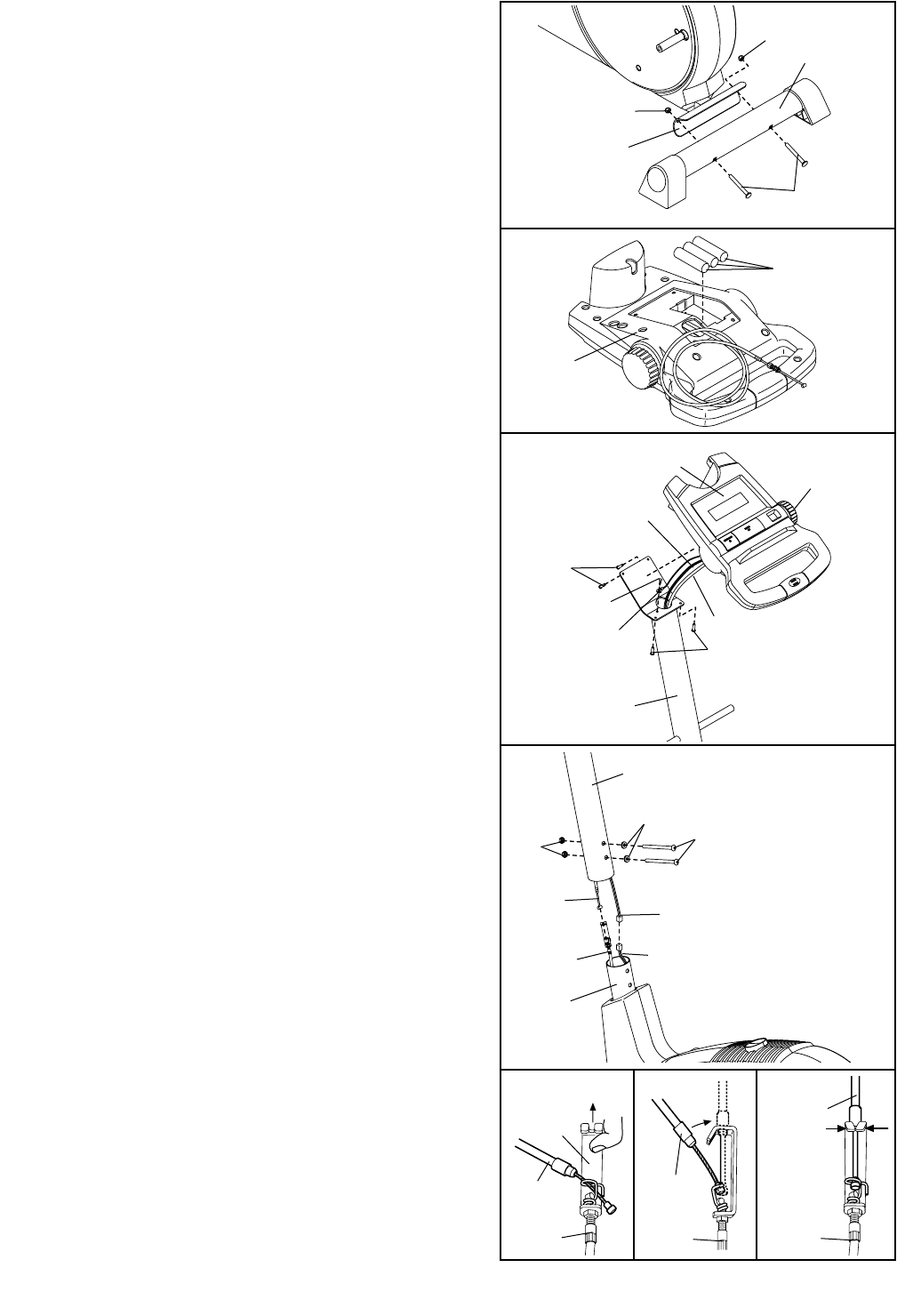

2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
34
9
1
2
33
33
3. The Console (23) requires three “AA” batteries (not
included); alkaline batteries are recommended. Insert
three batteries into the battery compartment. Make
sure that the batteries are oriented as shown by
the diagram inside the battery compartment.
23
Batteries
3
4. While another person holds the Console (23) in the
position shown, insert the control cable and the con-
sole wire down through the Upright (2). Attach the
ground wire to the Upright with an M4 x 16mm Self-
tapping Screw (52). Insert the excess cable and wire
into the Upright.
Attach the Console (23) to the Upright (2) with four
Console Screws (59). Be careful to avoid pinching
the cable and wires.
Make sure the Resistance Knob (42) is set on the
lowest setting before proceeding to the next step.
4
5
1
2
33
Make sure the
Wires and
Cables do not
get pinched and
damaged during
this step.
Console
Wire
53
7
43
Control
Cable
45
5. While another person holds the Upright (2) in the posi-
tion shown, connect the console wire to the Reed
Switch Wire (53).
Next, connect the control cable to the Resistance
Cable (43) in the following way:
• Refer to drawing A. Pull up on the metal bracket, and
insert the tip of the control cable into the wire clip on
the Resistance Cable (43) as shown.
• Refer to drawing B. Firmly pull the control cable and
slide it into the metal bracket on the Resistance
Cable (43) as shown.
• Refer to drawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Push the excess cable and wires down into the Frame
(1). Insert the Upright (2) into the Frame. Do not pinch
the wires or cables. Secure the Upright to the Frame
with two M10 x 74mm Bolts (7), two M10 Split
Washers (45), and two M10 Nylon Locknuts (33). Do
not tighten the Bolts yet.
43
43
Metal
Bracket
B
A
C
43
Control
Cable
Control
Cable
Control
Cable
23
2
59
59
42
Control Cable
Console Wire
Ground Wire
52
