ProForm 831.280182 Home Gym User Manual



4
ASSEMBLY
Assembly requires two persons. Place all parts of the crosstrainer in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
allen wrenches, assembly requires a phillips screwdriver , an adjustable wrench
and a rubber mallet .

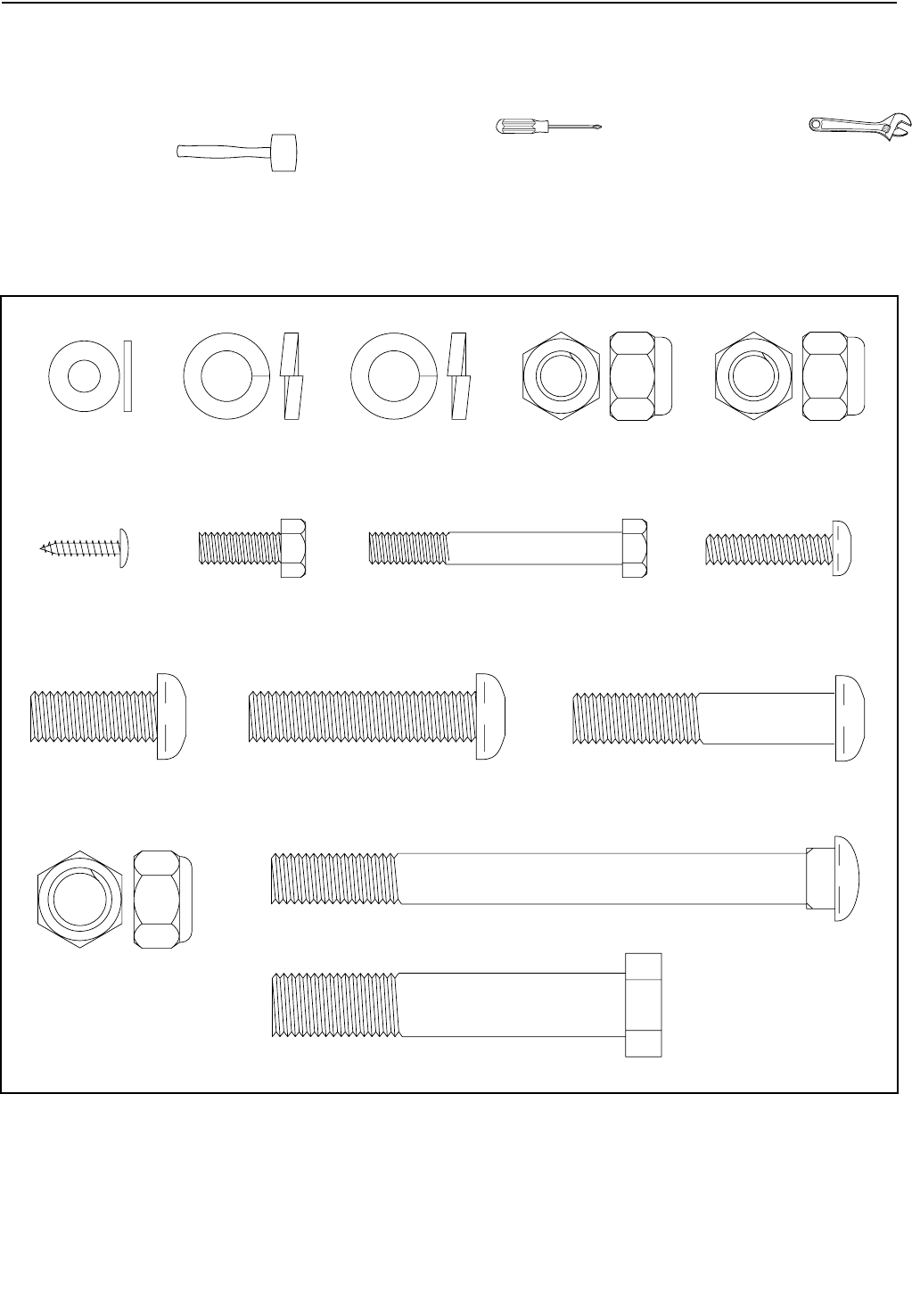

As you assemble the crosstrainer, use the drawings below to identify the small parts used in assembly. The
number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page
22. The second number refers to the quantity used in assembly. Note: Some small parts may have been pre-
assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 x 112mm Carriage Bolt (65)–2
M4 x 16mm
Screw (73)–1
M10 Zinc Nylon
Locknut (66)–2
M10 Nylon Black
Locknut (63)–2
M6 Flat
Washer (71)–3
M10 x 27mm Button
Screw (76)–3
M10 x 45mm Button
Screw (74)–2
M10 x 52mm Button Bolt (68)–2
M10 Zinc Split
Washer (85)–2
M10 Black Split
Washer (77)–3
1/2” x 70mm Bolt (51)–1
1/2” Nylon
Locknut (52)–1
M6 x 50mm Screw
(69)–3
M6 x 25.4mm Button
Screw (79)–1
M6 x 16mm
Screw (64)–5
