S3.15 Assembly and Maintenance Guide
page 25
1 2 3 4 5 6
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
12. Apply Weight Decals and
Lubricant
A. Peel the Weight Label off the Weight Label Strip.
B. Peel the backing off the Weight Label to expose
the adhesive and place a label on each Weight
Plate, starting with the Top Cap Weight. The
recommended location of the label is toward the
rear of the unit (refer to the illustration).
C. Apply one tube of lubricant to each Guide Rod.
CAUTION: The lubricant can stain clothes. Wear
proper attire when lubricating the Guide Rods.
This completes the assembly of your S3.15 Strength-
Training Fitness Equipment. Before exercising on the
S3.15, adjust the cable tension. Refer to
Cable
Adjustments and Maintenance
.
Note: If you have purchased optional equipment, refer
to the
Assembly Instructions
accompanying the option.

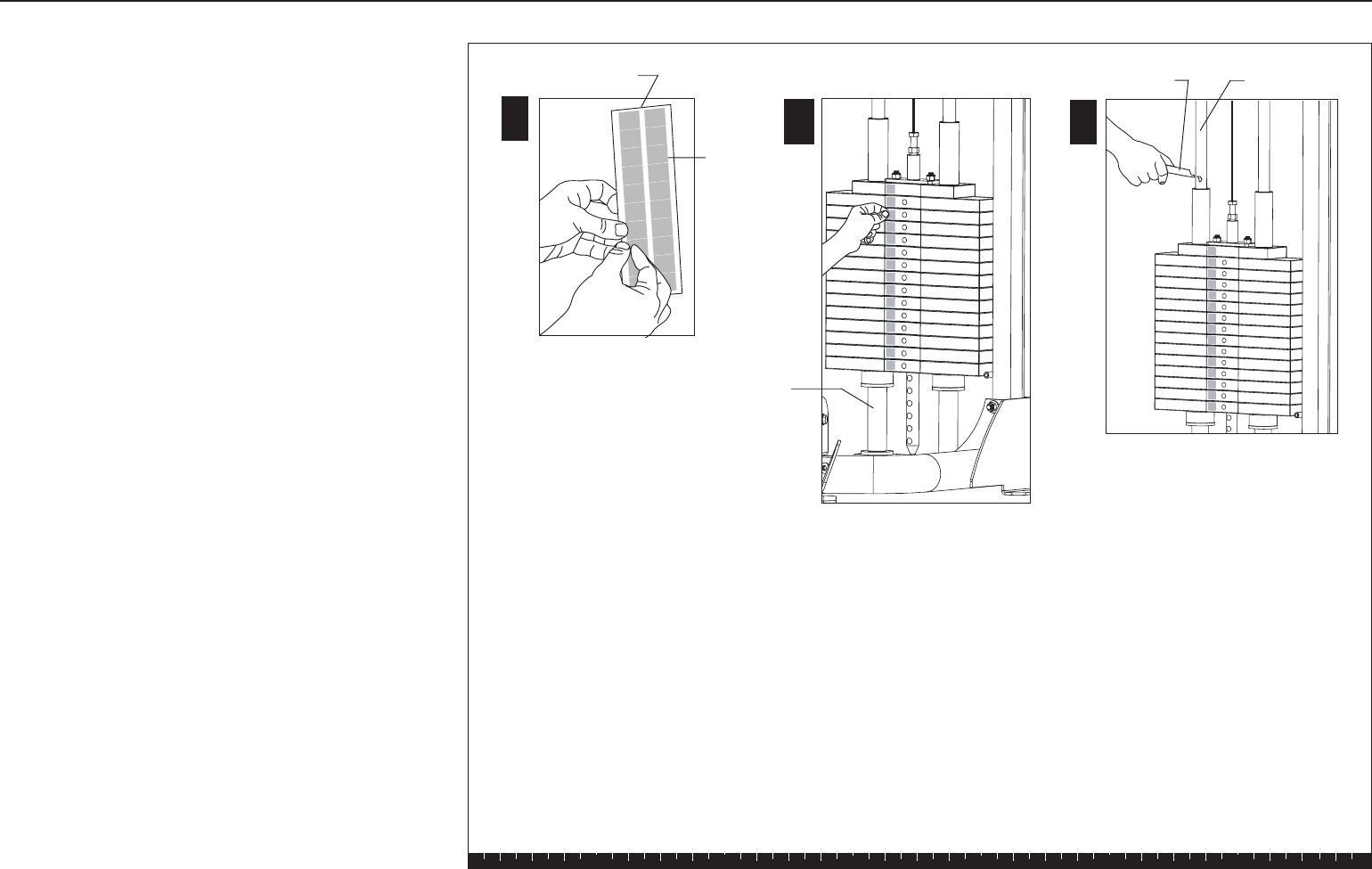

Step 12. Apply Weight Decals and Lubricant
C
Lubricant Guide Rod
A
B
Weight Label Strip
Weight
Label
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
Guide Rod Spacers*
*Heavy Stack Option not shown.
