Step 3
Attach Cross Base (8) to Main Frame (1) using Plate (14), two Bolts (39), four Washers (43),
and two Nylon Lock-nuts (42).
Slide Pulley Block (10) onto the Cross Base (8) and secure in place using two Bolts (40), four
Washers (43), and two Nylon Lock-nuts (42).

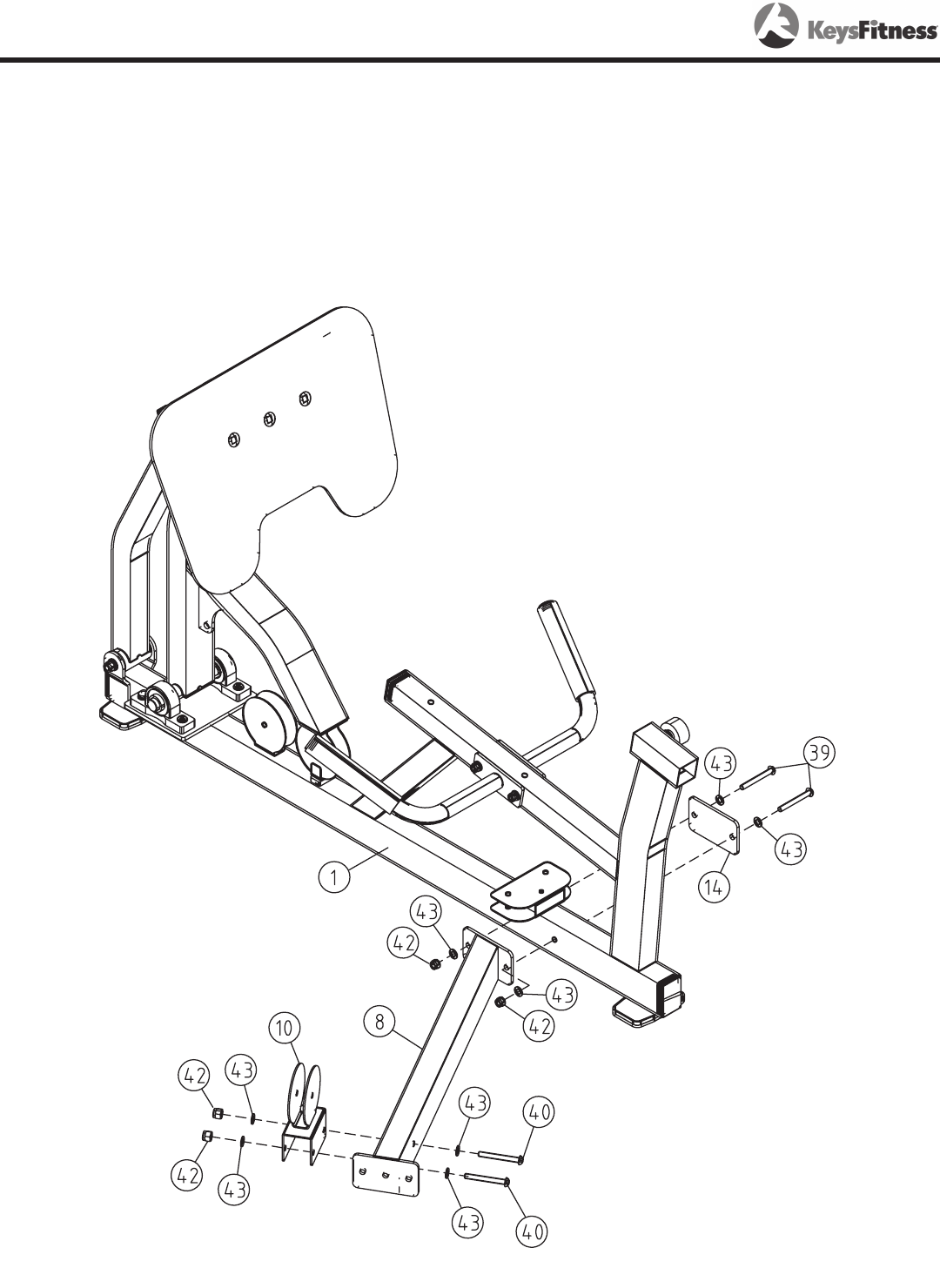

Figure 3
7
Assembly
