24 BURLEY TRAILER OWNER’S INSTRUCTION AND SAFETY MANUAL
BURLEY TRAILER OWNER’S INSTRUCTION AND SAFETY MANUAL 25
Cub
™

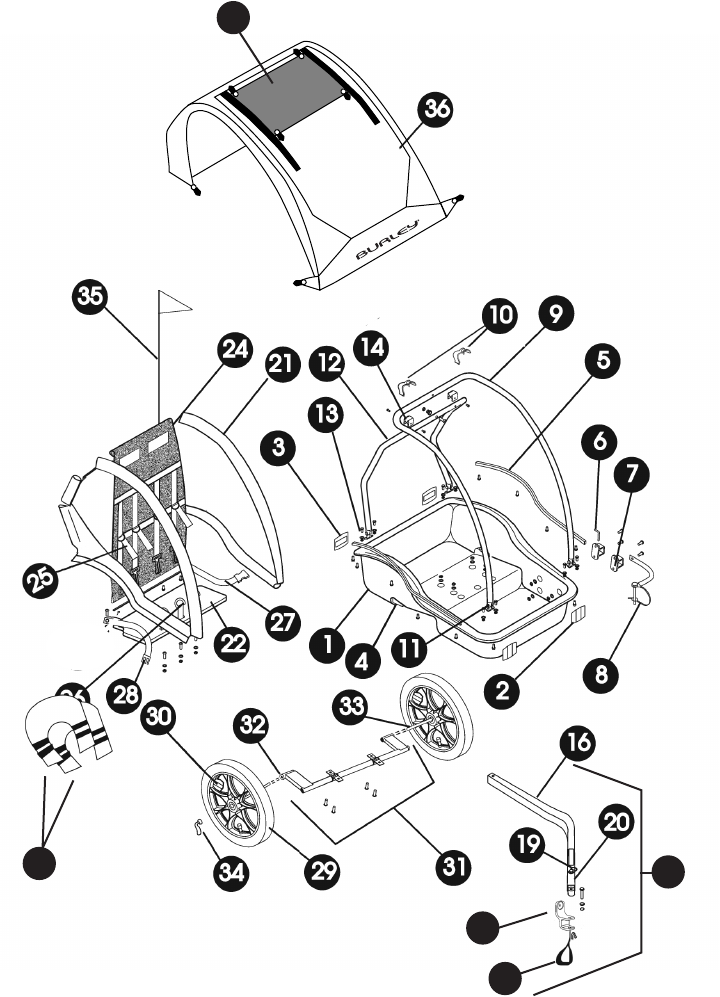

Parts List & Diagram
Note: Subassemblies are indented (contact Burley about parts not listed).
1. (1) Polyurethane Shell
2. (2) Front Reflector (clear)
3. (2) Rear Reflector (red)
4. (2) Suspension Elastomer
5. (1) Pair Side Panel Hold Down (left and right)
6. (1) Tongue Retaining Pin
7. (1) Pair Tongue Receptacle (front and rear)
8. (1) Safety Pin & Tether
9. (1) Front Roll Bar, 7/8” Aluminum Tube
10. (2) Frame Locks
11. (2) Front Roll-Bar Hinge (aluminum)
12. (1) Rear Roll bar, 7/8” Aluminum Tube
13. (2) Rear Roll Bar Hinge (aluminum)
14. (2) Roll Bar Saddle (plastic)
15. (1) Tongue and Hitch Assembly
16. (1) Tongue, 1 1/8” Square Aluminum
17. (1) Hitch
18. (1) Hitch Safety Strap
19. (1) Clip & D-Ring
20. (1) Rubber Flex Connector (not available without hitch)
21. (1) Pair Fabric Side-panel Assembly, with Vinyl Windows
22. (1) Seat pad
23. (2) Shoulder Pads
24. (1) Flow-Thru Seat Back with Harness
25. (4) Shoulder Strap
26. (3) Crotch Strap
27. (1) Lap Belt
28. (1) Buckle for Lap Belt
29. (2) Wheel, Each with (2) Wheel Bearing
30. (2) Wheel Reflector (clear)
31. (1) Swing Arm Assembly
32. (2) Hollow Axle
33. (2) Wheel Axle Assembly
34. (2) Quick-Release Lever
35. (1) Safety Flag
36. (1) Big Screen 2-in-1 Cover
37. (1) Adjustable Sunscreen
Options (at additional cost):
•
European Roll Bar (not shown)
•
Stroller Kit (not shown)
•
Trailer Storage Cover (not shown)
15
18
17
37
23
