SET UP INSTRUCTIONS

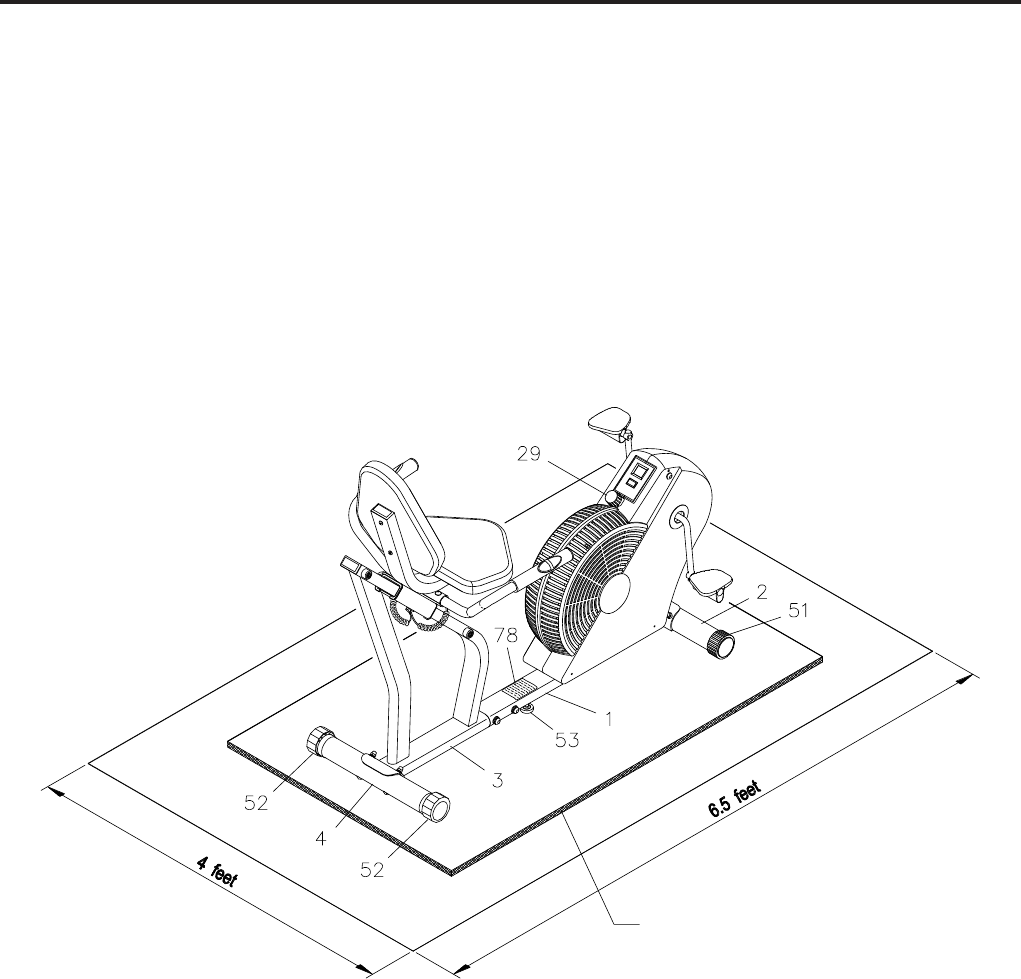

Place the Air Fusion 4525 Bike in the area where it will be used. It is recommended that the Air Fusion
4525 Bike be placed on an equipment mat. The Air Fusion 4525 Bike is approximately 51 3/4 inches long
x 24 3/8 inches wide x 45 inches tall (max.). (These dimensions may vary up to one inch.) An area 4 feet
wide x 6.5 feet long is required for safe operation of the Air Fusion 4525 Bike. Make sure that adequate
space is available for access to and passage around the Air Fusion 4525 Bike.
LEVELING:
MOVING:
FUNCTION INSPECTION:
Visually inspect the Air Fusion 4525 Bike to verify that assembly is as shown in the above illustration.
Check the function of the Air Fusion 4525 Bike by turning the crank slowly through one complete revolution
to verify that the drive train functions properly. Adjust the TENSION KNOB(29) to verify that the adjustable
tension is working properly.
Locate and read the WARNING LABEL(78) on the Air Fusion 4525 Bike. Make sure that all
users read the WARNING LABEL(78).
CAUTION:
Adjust the STAND(53) under the FRONT FRAME(1) and the LEVELING CAPS(52) on the
REAR STABILIZER(4) so that the Bike sits on the floor without rocking. Remove and reposition
the LEVELING CAPS(52) on the REAR STABILIZER(4) to level the Air Fusion 4525 Bike.
The Air Fusion 4525 Bike has a pair of WHEELS(51) on the FRONT STABILIZER(2). Lift up
from REAR STABILIZER(4) to move the Air Fusion 4525 Bike.
To level the Air Fusion 4525 Bike, first screw the STAND(53) located in the middle of the FRONT FRAME(1)
all the way up into the FRONT FRAME(1) so that it is not touching the floor. Adjust the two LEVELING
CAPS(52) on the REAR STABILIZER(4). When the LEVELING CAPS(52) are adjusted and the Air Fusion
4525 Bike is stable, rotate the STAND(53) to make it contact with the floor.
While you are adjusting the LEVELING CAPS(52) the STAND(53) must not be in contact with the floor.
Only after the Air Fusion 4525 Bike has been stabilized with the LEVELING CAPS(52) will you position
the STAND(53) so it is in contact with the floor to provide extra stability for the frame.
EQUIPMENT MAT (not included)
