Rev. 0.1 5/06 Copyright © 2006 by Silicon Laboratories STEPPER-MOTOR-RD
STEPPER-MOTOR-RD
STEPPER MOTOR REFERENCE DESIGN KIT USER’S GUIDE
1. Kit Contents
The Stepper Motor Reference Design Kit contains the following items:
Stepper Motor Reference Design Board
Stepper Motor
Universal AC to DC Power Adapter
USB Debug Adapter
USB Cable
Serial Cable
Reference Design Kit Tools & Documentation CD
2. Kit Overview
This reference design demonstrates a high-performance stepper motor system using the C8051F300/1. The
reference design provides for both stand-alone demo operation and UART control. The reference design may also
be used as a platform for stepper motor code development.
This User's Guide provides a step-by-step guide for getting your system up and running. Refer to the application
note “AN155: Stepper Motor Reference Design“ for complete documentation of the Stepper Motor Reference
Design.

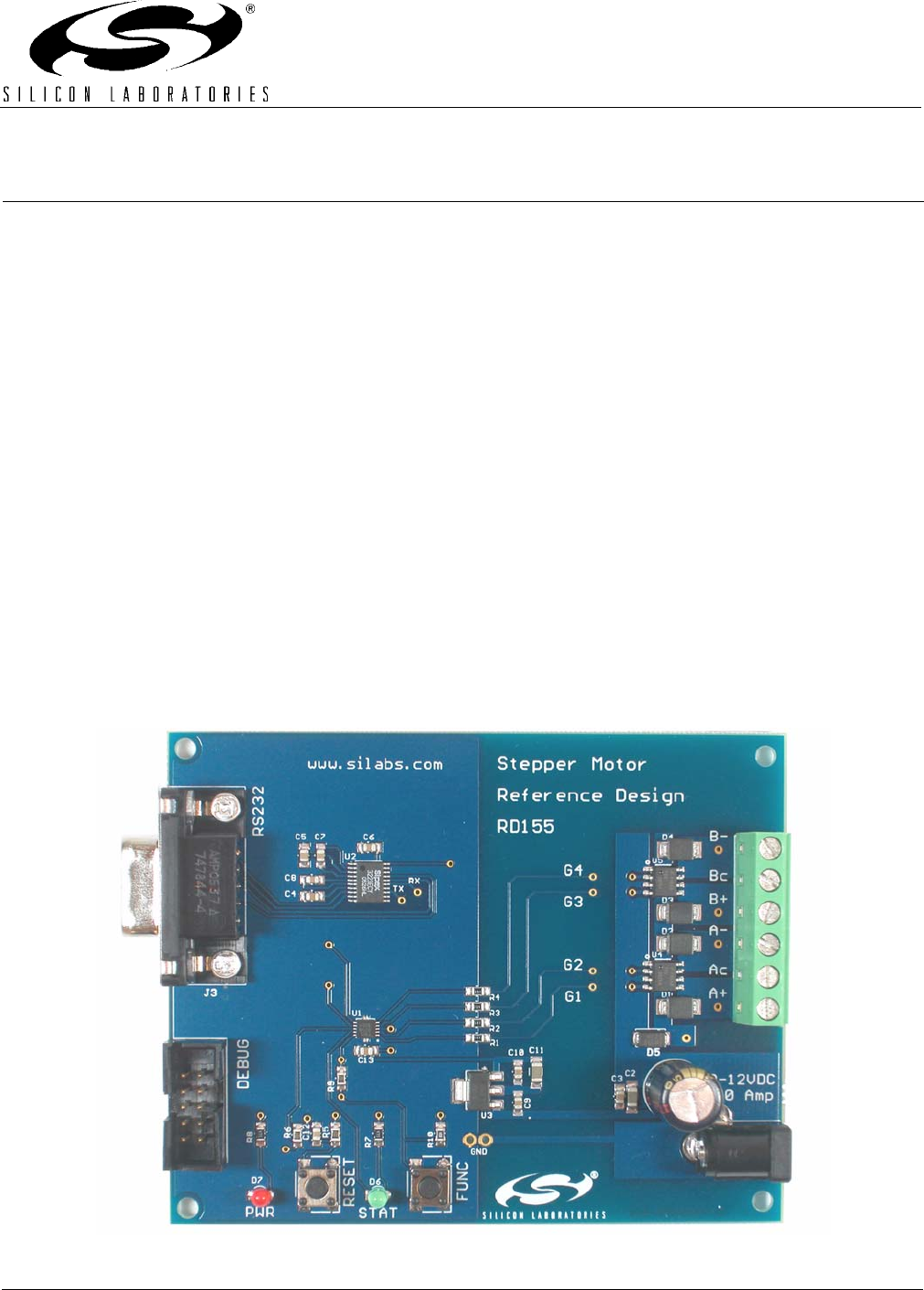

Figure 1. Stepper Motor Reference Design Board
