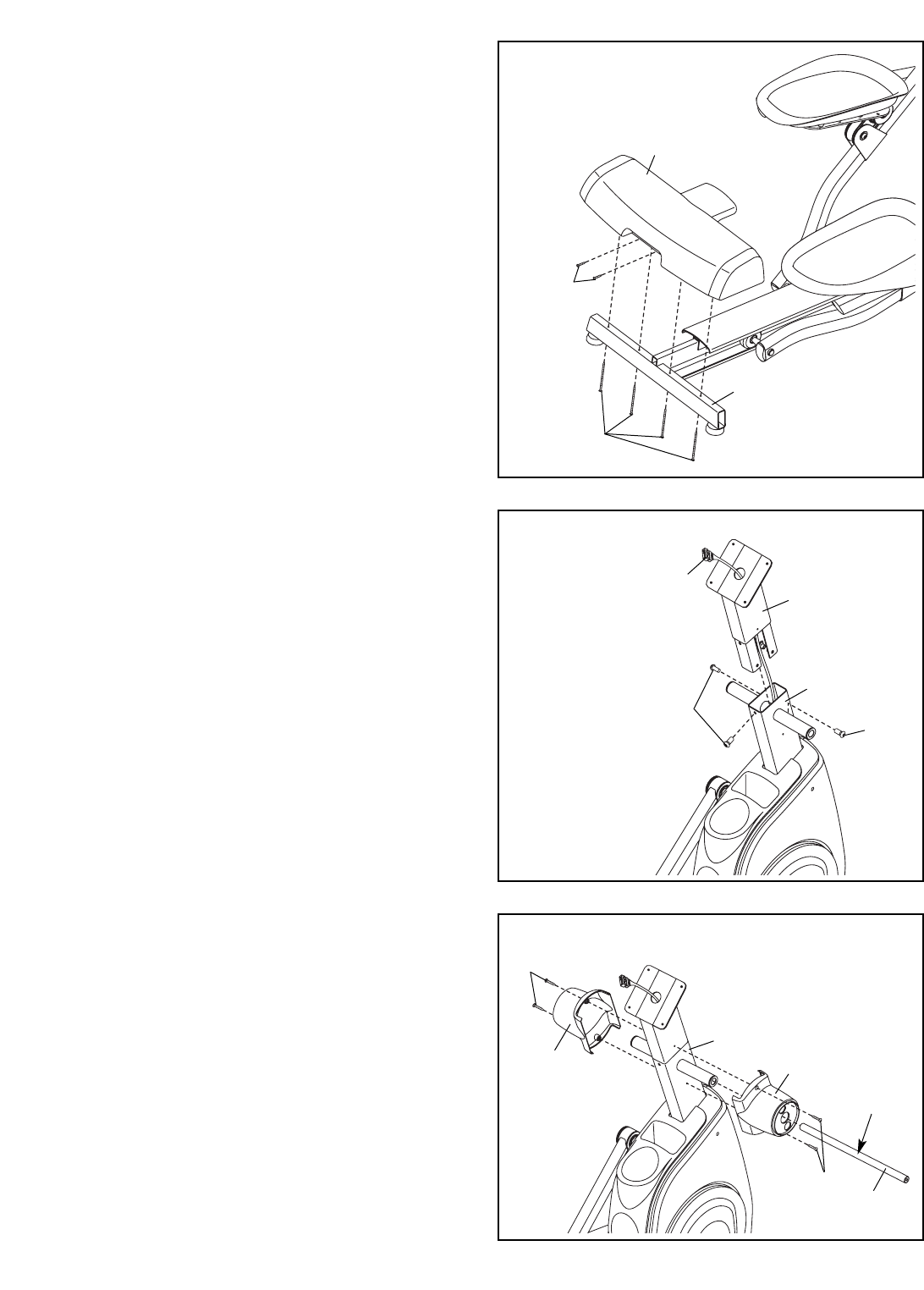

8. Have a second person hold the Upright (6) near
the Frame (2) as shown.
Pull the Wire Harness (48) out of the Frame (2)
and insert it upward through the Upright (6). Tip:
Use a piece of tape or an elastic band to hold
the Wire Harness in place until step 14.
Insert the Upright (6) into the Frame (2). Tip:
Start all screws before tightening any of
them. Attach the Upright with three M8 x 16mm
Button Screws (95). Avoid pinching the Wire
Harness (48) between the Upright and the
Frame.
8
9. Apply a generous amount of grease to the Pivot
Axle (65) and insert it into the Frame (2).
Orient the two Frame Covers (17) as shown.
Attach the Frame Covers to the Frame (2) with
four M4 x 16mm Screws (86).
9
86
86
65
17
17
2
48
95
95
6
2
Grease
Avoid pinching the
Wire Harness (48)
during this step
7. Orient the Rear Frame Cover (23) as shown.
While a second person tips the elliptical exercis-
er forward, attach the Rear Frame Cover to the
Base (1) with four M4 x 65mm Screws (91) and
two M4 x 16mm Self-tapping Screws (79).
23
79
91
7
1
