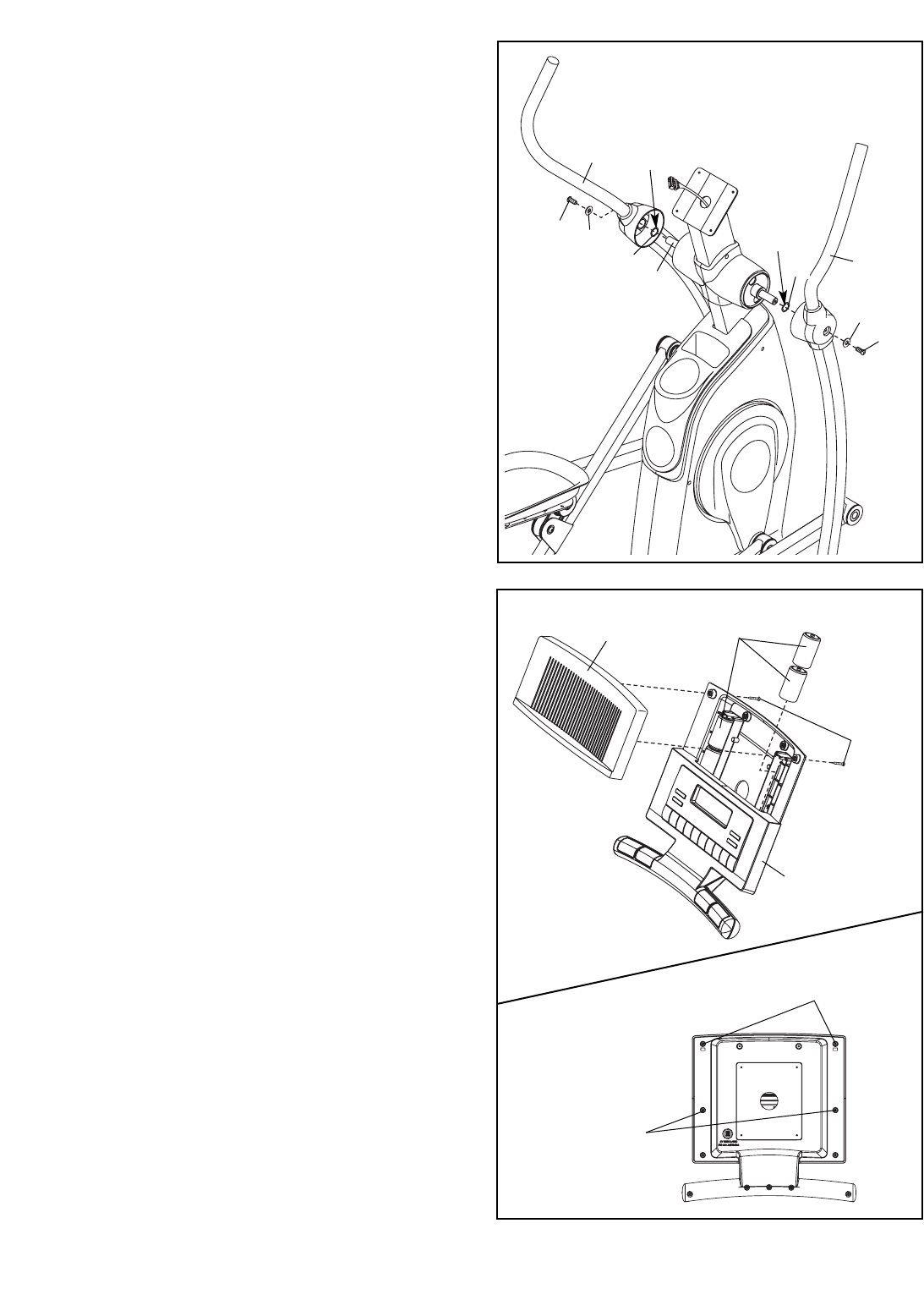

13. The Console (5) can be operated with four 1.5V
“D” batteries (not included); alkaline batteries are
recommended. IMPORTANT: If the elliptical
exerciser has been exposed to cold temper-
atures, allow it to warm to room temperature
before inserting batteries into the Console. If
you do not do this, the console displays or
other electronic components may become
damaged. Remove the two battery screws from
the back of the console, and remove the battery
cover. Insert four batteries into the Console.
Orient the batteries as shown by the markings
inside the battery compartment. Then, reattach
the battery cover. Note: If it is difficult to reattach
the battery cover, remove the two battery
screws, loosen the two indicated console screws
a few turns, insert the lower edge of the battery
cover into the console, and then retighten the
two console screws. Then, reattach the battery
cover with the two battery screws.
The Console (5) can also be operated with a
regulated 6-volt DC 2-amp power supply (not
included). To purchase a power supply, call
your local Sears store. To avoid damaging
the console, use only a manufacturer-sup-
plied power supply. Plug one end of the power
supply into the jack on the console. Plug the
other end of the power supply into an appropri-
ate outlet that is properly installed in accor-
dance with all local codes and ordinances.
13
5
Battery
Cover
Batteries
Battery
Screws
Battery
Screws
Console
Screws
12. Apply a small amount of grease to a Wave
Washer (93). Slide the Wave Washer onto the
right side of the Pivot Axle (65). Next, slide the
Right Handlebar (9) onto the Pivot Axle.
Attach the Right Handlebar (9) with an M10 x
23mm Shoulder Screw (80) and an M10 x 20mm
x 2mm Washer (81).
Repeat this step to attach the Left Handlebar
(8) to the Pivot Axle (65).
12
Grease
Grease
93
65
93
81
80
81
80
9
8
