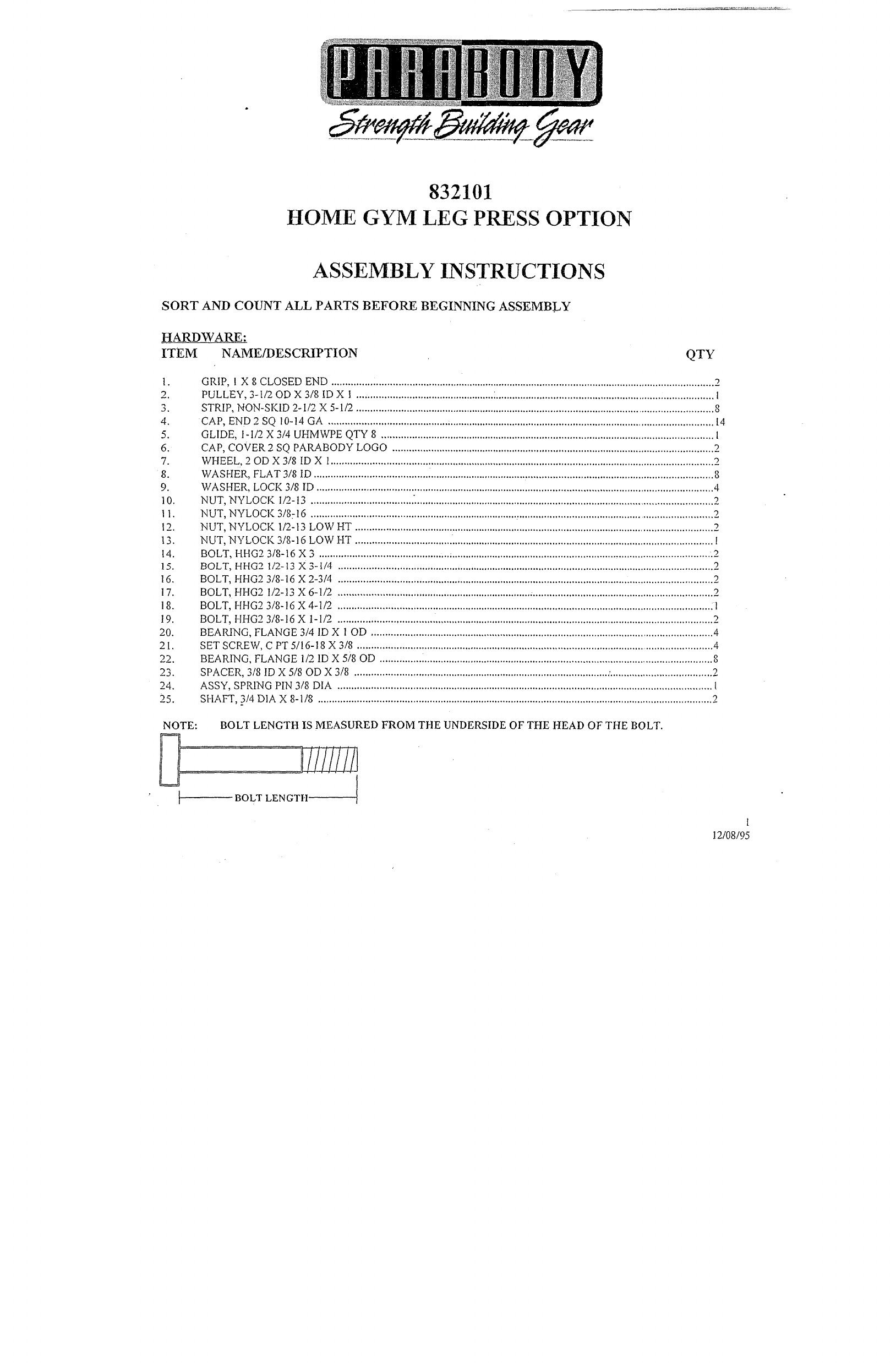

HOME GYM LEG PRESS OPTION
ASSEMBLY INSTRUCTIONS
SORT AND COUNT ALL PARTS BEFORE BEGINNING ASSEMBLY
HARDWARE:
ITEM NAME/DESCRIPTION
QTY
2.
3.
4.
5.
6.
7.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
GRIP, 1 X 8 CLOSED END ............... ~ ...........................................................................................................................2
PULLEY, 3-I/20D X 3/8 ID X 1 ..................................................
~ ...............................................................................
I
STRIP, NON-SKID 2-i/2 X 5-1/2 .................................................................................................................................. 8
CAP, END2 SQ 10-14 GA ........................................... ; ................................................................................................14
GLIDE, I-I/2 X 3/4 UHMWPE QTY 8 ......................................................................................................................... 1
CAP, cOVER 2 SQ PARABODY LOGO ..................................................................................................................... 2
WHEEL, 20D X 3/8 ID X 1 ........................................................................................................................................... 2
WASHER, FLAT 3/8 ID ......................................... i .......................................................................................................8
WASHER, LOCK 3/8 ID ................................................................................................................................................ 4
NUT, NYLOCK 1/2-13 ..................................... : ............................................................................................................2
NUT, NYLOCK 3/8:16 ........................................................................... .. ......................................................................2
NUT, NYLOCK 112-13 LOW HT .................................................................................................................................. 2
NUT, NYLOCK 3/8-16 LOW HT .................................................................................................................................. l
BOLT, HHG2 3/8-16 X 3 ............................................... ; ...............................................................................................2
BOLT, HHG2 112-13 X 3-I/4 ........................................................................................................................................
2
BOLT, HHG2 3/8-16 X 2-3/4 ........................................................................................................................................ 2
BOLT, HHG2 1/2-13 X 6-1/2 ...................................................................... ; .................................................................
2
BOLT, HHG2 3/8-16 X 4-1/2 ....................................................................................................................................... ;1
BOLT,
HHG2 3/8-16 X 1-I/2 ................................... .....................................................................................................
2
BEARING, FLANGE 3/4 ID X 10D ............................................................................................................................
4
SET SCREW, C PT 5/16-18 X 3/8 .................................................................................................................................
4
BEARING, FLANGE 1/2 ID X 5)80D ............... i .........................................................................................................8
SPACER, 3/8 ID X 5/80D X 3/8 .............................................................................................
, .....................................
2
ASSY, SPRING PIN 3/8 DIA ........................................................................................................................................ l
SHAFT, .3/4 DIA X 8-1/8 ............................................................................................................................................... 2
NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.
