336101

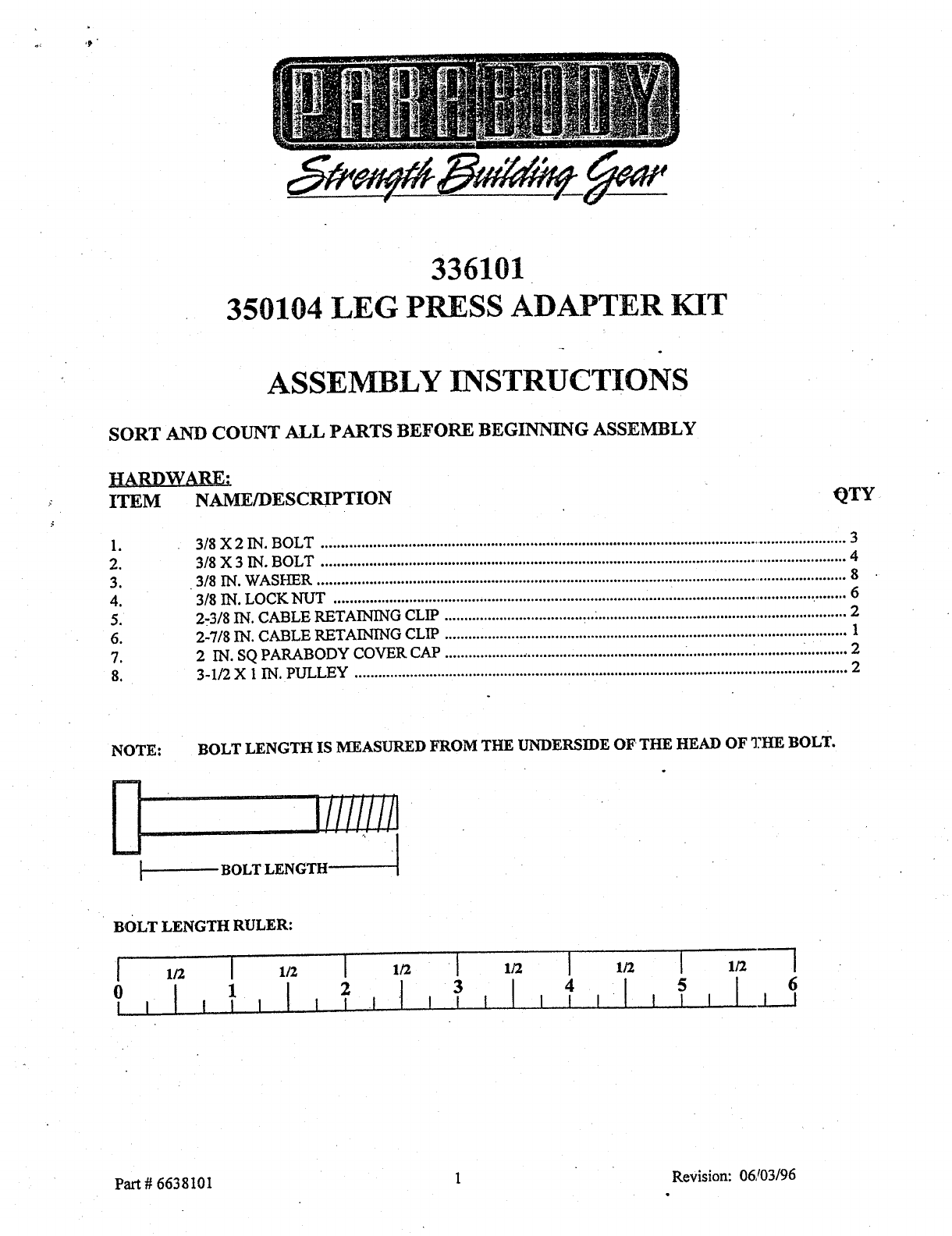

350104 LEG PRESS ADAPTER KIT
ASSEMBLY INSTRUCTIONS
SORT AND COUNT ALL PARTS BEFORE BEGINNING ASSEMBLY
ITEM NAME/DESCRIPTION
2.
3.
4.
5.
6.
7.
8.
3/8 X 2 IN. BOLT ......................................................................................................................................
3
3/8 X 3 IN. BOLT ......................................................................................................................................
4
3/8 IN. WASHER .........................................................................................
~ .............................................
8
6
3/8 IN. LOCK NUT ..........................................................................................................................
’. ........
2-3/8 IN. CABLE RETAINING CLIP ...................................
~..; ...............................................................
2
27/8 IN. CABLE RETAINING CLIP ......................................................................................................
1
2 IN. SQ PARABODY COVER CAP ......................................................................................................
2
2
3-1/2 X 1 IN. PULLEY .............................................................................................................................
NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.
IIIiiiiii
BOLT LENGTH
BOLT LENGTH RULER:
Part # 6638101
1
Revision: 06/03/96
